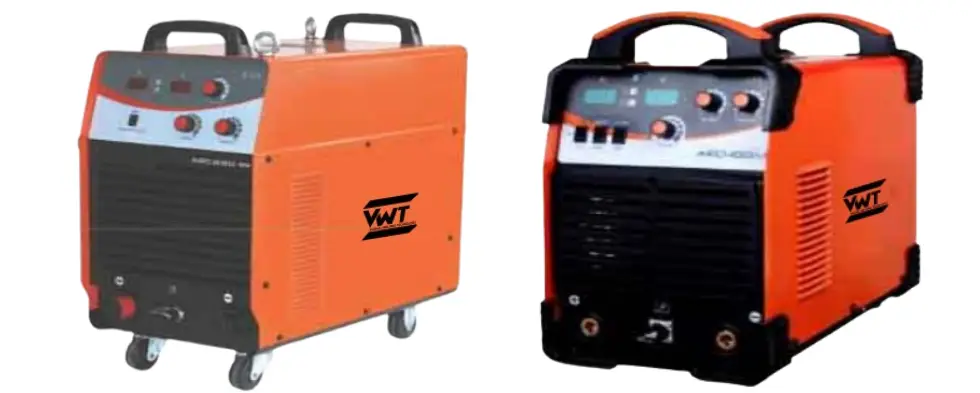

ARC-400M – ARC – 500, ARC – 630 J
Features
- IGBT module inverter technology
- Soft switching technology
- Excellent welding quality. optimum arc dynamic characteristics.
- Suitable for all acids, basic. stainless, low hydrogen electrodes.
- Suitable for up to 5 mm electrode
- Generator comparability International standards IEC 60974-1
Specifications
Standard
- Digital display
- Small size, lightweight
- Work with generator
- Over current/over voltage /over load protection
- Good performance with E6013, E7018 electrodes
- Adjustable arc force and hot start improve the performance
- Adjustable arc force brings good performance for all position welding
| Category | Specification |
|---|---|
| Input power source | 3~AC380V±15% 50/60Hz |
| Rated input current (A) | 28 / 40 / 50.6 |
| Rated input power capacity (KVA) | 18.2 / 29.4 / 35.5 |
| Power factor | 0.93 / 0.93 / 0.91 |
| Output current range (A) | 20-400 / 30-500 / 50-630 |
| Arc-force range (A) | 0-100 / 0-150 / 0-220 |
| Related no-load voltage (V) | 65 / 65 / 85 |
| Rated duty cycle (%) 40°C | 60 / 60 / 60 |
| Efficiency (%) | 85 / 85 / 85 |
| Protection class | IP21S / IP21S / IP23 |
| Insulation class | H / F / H |
| Dimensions (mm) | 618x330x441 / 618x330x441 / 661x340x625 |
| Weight (Kg) | 19 / 23 / 55 |
Specifications
Standard
- Adjustable Hot start
- Adjustable Arc force/Arc gouging (ARC630)
- Lift-arc TIG (ARC400)
- O.C. & O.H. protection

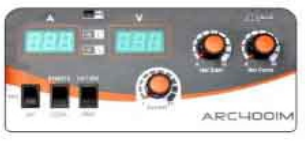

- Digital Current & Voltage Meter
- VRD on off selector switch with indicator
- Cable Remote Control
- Selector Switch for MMA & ARC Gouging (ARC 630)
Specifications
Standard
- 2pcs quick plugs (ARC 400, 500)
- 2pcs Lugs (ARC 630)
Optional
- Cellulosic Electrode
- Cordless Remote
