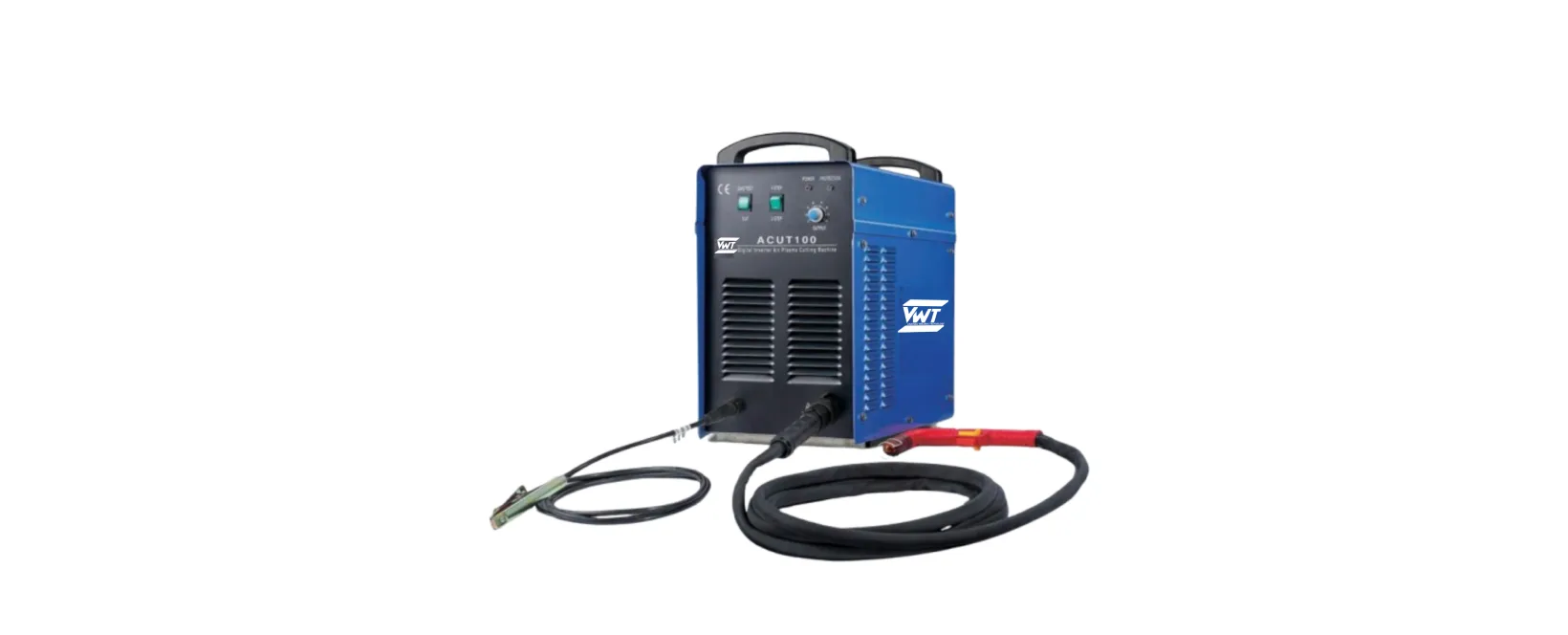

ACUT 100 /120
Features
- Industrial standard plasma cutting machine, robust structure
- Unique IGBT soft switch technology guarantees higher
efficiency and longer lifespan - Digital model, MCU control, good arc characteristic
- Pilot arc ignition, excellent arc starting performance
- High duty cycle, up to 60% under 40C temperature and 10
minutes condition - 2/4T trigger mode, suitable for long/short seam
- User-friendly panel, self-explanatory operation
Standard equipments
- 1 Power source
- 1 Connected primary cable L=3m
- 1 Ground cable L=3m
- 1 Pressure-reducing valve
- 1 Plasma torch
Recommended Applications
Maintenance and repair Industry plant and pipeline construction Boiler and container construction Metal shop Steel constructionSpecification
| MIG 400P N-317 Welding Machine Technical Details | ||
|---|---|---|
| Item | Details | |
| Rated Input Voltage/Frequency (V/Hz) | 3 Phase, AC380V±10%, 50/60Hz | |
| Rated Input Capacity (KVA) | 13 | 24 |
| Rated Input Current (A) | 20 | 38 |
| Duty Cycle (40℃) | 60%@350A | 100%@500A |
| Open Circuit Voltage (OCV) | 84 V | 84 V |
| Adjustable Current Range (A) | 25-350 | 25-500 |
| Adjustable Voltage Range (V) | 14-40 | 14-50 |
| Trigger Mode | 2T / 4T, Spot, Special 4T / Special 2T | |
| Wire Size (mm) | 0.8, 1.0, 1.2 | 1.0, 1.2, 1.6 |
| Double Pulse Frequency (Hz) | 0.5-5 | |
| Job Channels | 100 | |
| Protection Class | IP23 | |
| Dimension (mm) | 660 × 320 × 560 | |
| Weight (kg / lb) | 45 / 99 | 53 / 116.3 |
| Pictures | Item | Model | H.D. |
|---|---|---|---|
 |
Circuit Breaker | DZ47-60 D40GP | 745015-00021 |
 |
Main Control Board | Pulse MIG350BM-1.8 | 726608-00038 |
 |
Drive Board | ZXT-408A 7.3 | 745015-00036 |
 |
Transformer for 2X60GB | NKG60B 3-1 | 726608-00048 |
 |
Transformer for 2X60GB | NKG60B 3-2 | 726608-00054 |
 |
Current Transformer Board | NKG60B 5.2.0 | 726608-00037 |
 |
Resonance Inductor | ZX7-400III.3.2.0 | 220521-00007 |
 |
Display Board | Pulse MIG500III.1.1.0 | 220503-00011 |
 |
Fan | 200FYZ7-D | 746001-00011 |
 |
Polypropylene Capacitor | MFD-DA01-500V-4µF | 722001-00073 |
 |
Polypropylene Capacitor | MFD-DA01-1400V-20µF | 722001-00070 |
 |
IGBT Protection Board | Pulse MIG350III.5.1.0 | 220005-00115 |
 |
IGBT Module | SKM100GB12T4 | 735007-00038 |
 |
Fast Recovery Diode Module | MMF300Y060DK1 | 735006-00029 |
 |
Thermal Switch | KSD301 250V 10A 70°C | 745008-00006 |
| Specification | UNIT | ACUT100 | ACUT120 |
|---|---|---|---|
| Welding current range | A | 30–100 | 30–120 |
| Supply voltage | Volt | 415 | 415 |
| Welding current @ 60% Duty cycle | A | 100 | 120 |
| Welding current @ 100% Duty cycle | A |
