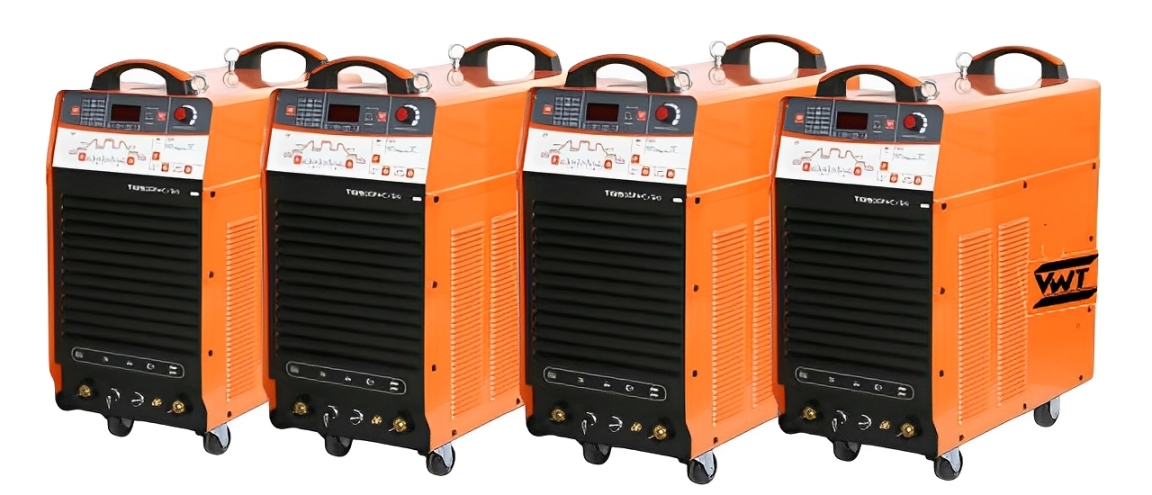

TIG 500 AC/DC
Features
- IGBT module inverter technology
- Digital control mode and man-machine interaction for easy and convenient operation
- Complete auto protection with 6 sets of parameter protection to guarantee high reliability.
- A Useful welding process management function to store 5 sets of the most frequently used welding parameters.
- Multiple 15 TIG modes to meet various welding demands.
- Adjustable balance and pulse frequency when under AC TIG to achieve more refined welding.
- Extensible synchronized TIG welding functions with two machines.
- Easy auto welding functions compatible with robots and other automation equipment.
- International Standard IEC 60974-1
Specifications
Standard
- AC-TIG/AC PULSE TIG/AC MMA
- DC-TIG/DC PULSE TIG/DC MMA
- AC Square weave TIG, etc.
- O.H. & OC indicator
- Digital display meter
- Adjustable Post Flow time
- Adjustable hot start/arc force
Accessories
Standard
- 1pc 5m WP-12 TIG torch water cooled
- Earth clamp 500 A+50mmx2m cable +quick plug
Specification
| Model | TIG 500 AC/DC E312 |
|---|---|
| Input power source | 3-AC380V ±15% 50/60Hz |
| Rated input current (A) | 29.6 |
| Rated input power capacity (KVA) | 21 |
| Rated output (A/V) | TIG: 500/30, MMA: 400/36 |
| Rated duty cycle (%) @40°C | 60 |
| No-load voltage (V) | 68 |
| MMA Output current (A) | DC: 10-410 AC: 20-410 |
| Arc start range (A) | DC: 10-410 AC: 20-410 |
| Arc force range (A) | 0-250 |
| AC frequency range (Hz) | 50 |
| TIG initial current (A) | DC: 10-510 AC: 20-250 |
| Peak current (A) | DC: 10-510 AC: 20-510 |
| Background current (A) | DC: 10-510 AC: 20-250 |
| Crater current (A) | 0.5-20 |
| DC pulse frequency (Hz) | 0.2-500 |
| DC pulse duty ratio (%) | 10-90 |
| AC frequency (Hz) | 20-70 |
| +/- half wave duty ratio (%) | 10-90 |
| AC pulse frequency (Hz) | 0.5-6.0 |
| AC pulse duty cycle (%) | 10-90 |
| Up/Down-slope (S) | 0-15.0 |
| Pre-flow time (S) | 0-15.0 |
| Post-flow time (S) | 2.0-20.0 |
| Spot welding time (S) | 0.0-8.9 |
| Arc starting | HF |
| Efficiency (%) | 85 |
| Protection class | IP2 1S |
| Insulation class | F |
| Dimensions (mm) | 650 x 34 x 783 |
| Weight (Kg) | 63 |
