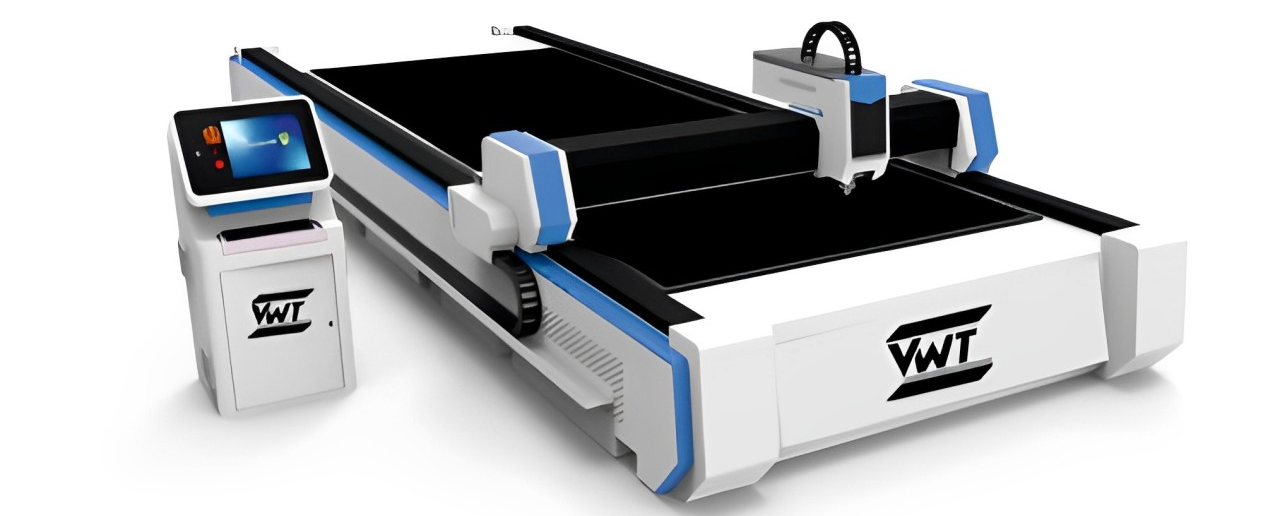

Fiber Laser Cutting Machine
Fiber Laser Cutting Machine
| Model | VWT 3015 | VWT 4015 | VWT 6315 | VWT 4020 | VWT 6320 |
| Track Width (mm) | 1500 | 1500 | 1500 | 2000 | 2000 |
| Track Length(mm) | 3000 | 4000 | 6300 | 4000 | 6300 |
Technical Parameter
| Item | Technical Parameter |
|---|---|
| Laser Type | Fiber Laser Source IPG |
| Laser Wavelength | 1070-2080nm |
| Electro-optical conversion efficiency | 25-30% |
| XYZ axis working length | 3000mm/1500mm/120mm |
| Cutting thickness | MS0.5-12mm (Depend on materials) |
| Incision seam width | 0.1-0.2mm |
| Repeated position in accuracy | 0.05mm/1000mm |
| Traverse Speed | 100M/min |
| Maximum acceleration | 1.0G |
| Table maximum load | 800kg |
| Total machine weight | 4000kg Approx. |
| Power demand | 380V 50Hz/60Hz |
| Dimension (L x W x H) | 4600mm*2750mm*1500mm |

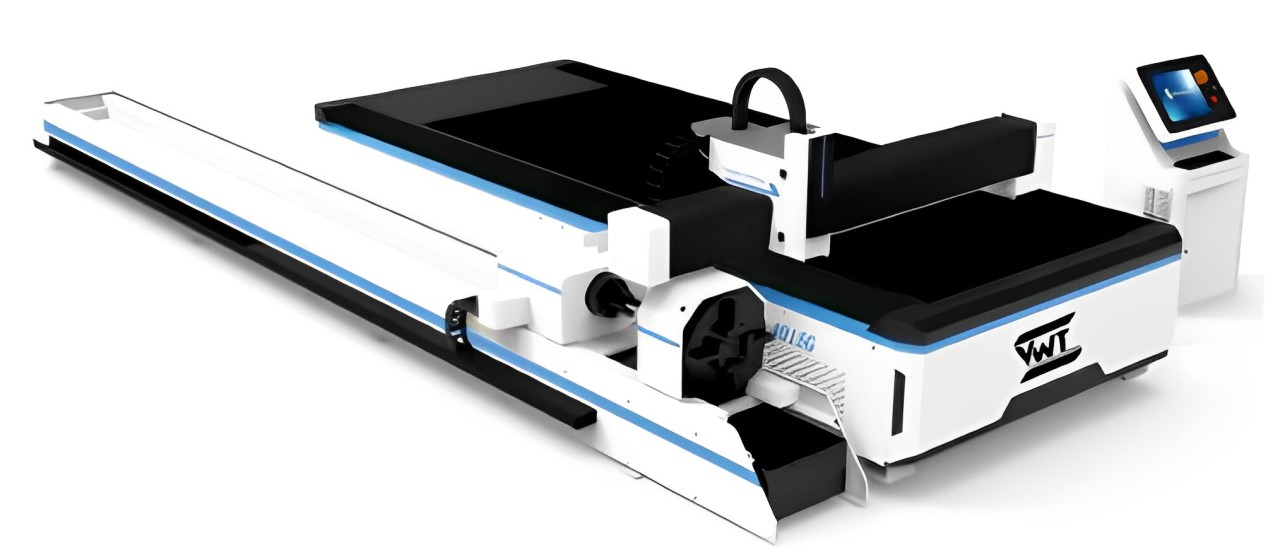

Sheet And Tube Fiber Laser Cutting Machine
| Model | VWTP 3015 | VWTP 4015 | VWTP 6315 | VWTP 4020 | VWTP 6320 |
| Track Width (mm) | 1500 | 1500 | 1500 | 2000 | 2000 |
| Track Length(mm) | 3000 | 4000 | 6300 | 4000 | 6300 |
Technical Parameter
| ITEM | TECHNICAL PARAMETER |
|---|---|
| Laser Type | Fiber Laser Source IPG |
| Laser wavelength | 1070-1080nm |
| Electro-optical conversion efficiency | 25-30% |
| XYZ axis working length | 3000mm / 1500mm / 120mm |
| Cutting thickness | MS 0.8-12mm (Depend on materials) |
| Incision seam width | 0.1-0.2mm |
| Repeated position in accuracy | 0.03mm / 1000mm |
| Positioning accuracy | 0.05mm |
| Traverse Speed | 800M/min |
| Maximum acceleration | 0.5G |
| Table maximum load | 800kg |
| Total machine weight | 5000kg |
| Power demand | 380V 50Hz/60Hz |
| Dimension (Length x Width x Height) | 4600mm * 3600mm * 1500mm |

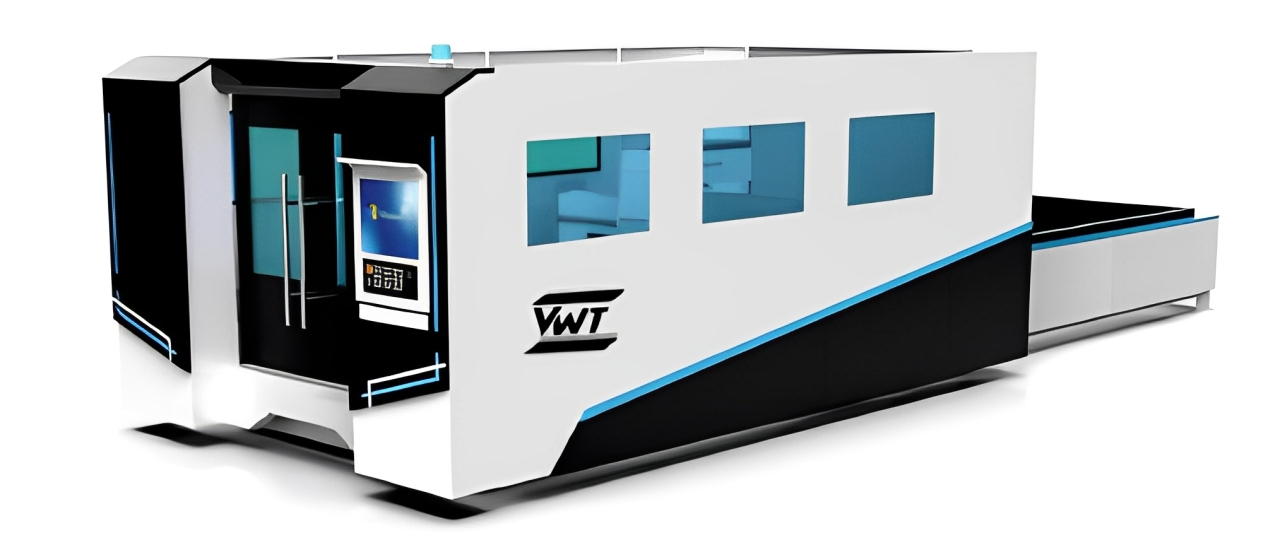

Exchange Table Fiber Laser Cutting Machine
| Model | VWTP 3015 | VWTP 4015 | VWTP 6315 | VWTP 4020 | VWTP 6320 |
| Track Width (mm) | 1500 | 1500 | 1500 | 2000 | 2000 |
| Track Length(mm) | 3000 | 4000 | 6300 | 4000 | 6300 |
Technical Parameter
| ITEM | TECHNICAL PARAMETER |
|---|---|
| Laser Type | Fiber Laser Source IPG |
| Laser wavelength | 1070-1080mm |
| Electro-optical conversion efficiency | 25-30% |
| XYZ axis working length | 3000mm/1500mm/120mm |
| Cutting Thickness | MS 0.5-12mm (Depend on materials) |
| Incision seam width | 0.1-0.2mm |
| Repeated position in accuracy | 0.03mm/1000mm |
| Positioning accuracy | 0.05mm |
| Traverse Speed | 140M/min |
| Maximum acceleration | 1.05G |
| Table maximum load | 800kg |
| Total machine weight | 5000kg |
| Power demand |
380V 50 |
Sheet And Tube Fiber Laser Cutting Machine

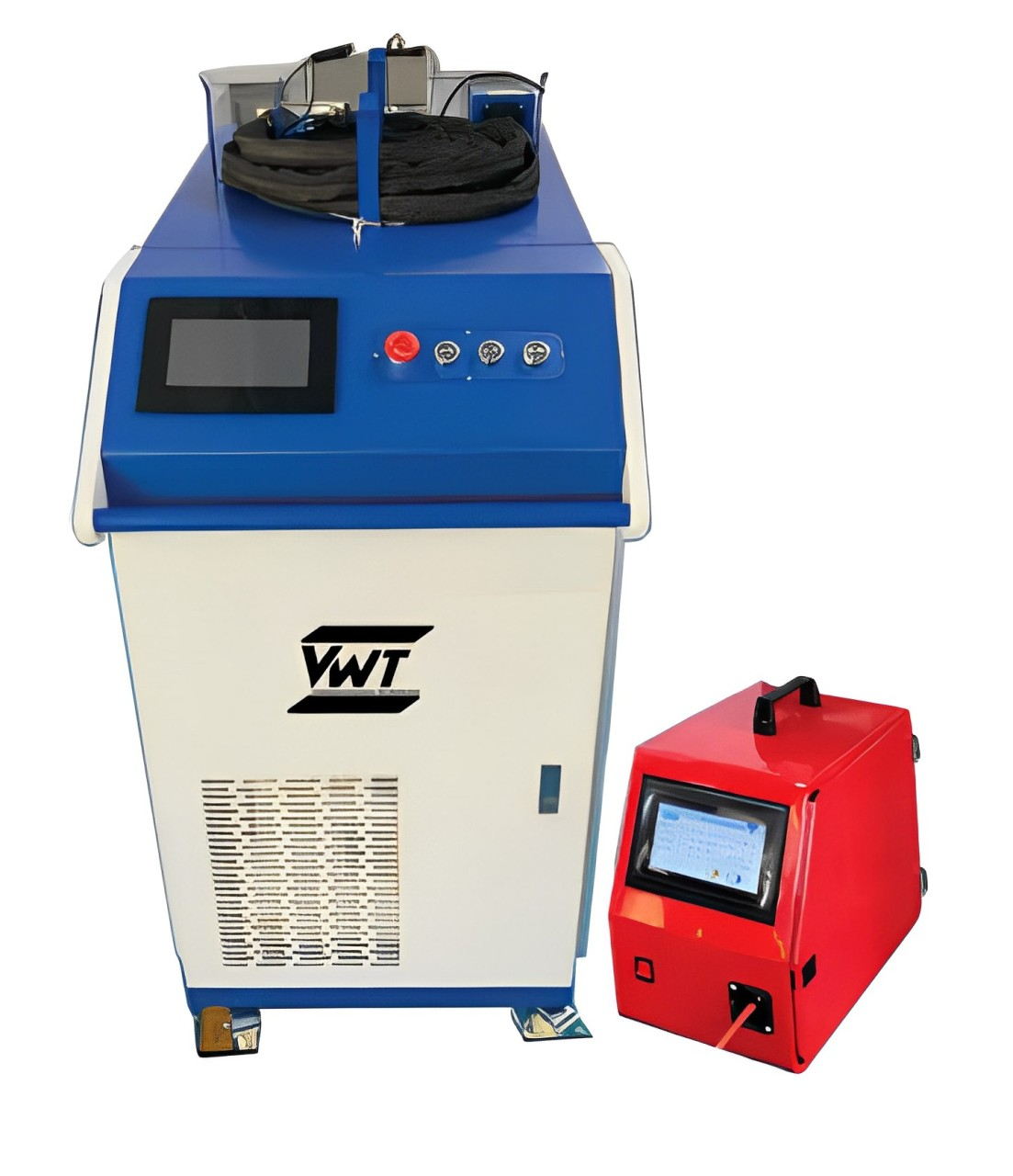

Laser Welding Machine
| Laser Power : | 1 Kw/1.5 Kw/2 Kw /3Kw |
| Beam Width : | 0.2 to 5mm (Depending on Welding Head) |
| Laser Wavelenght : | 1070 mm |
| Optical Fiber : | 100um, 5m |
| Cooling Medium : | 1000 Hz |
| Continuous Working Time : | 24 Hours |
| Power Supply Demand : | 200 10%, 50Hz |
| Head Type : | Wobble with Galvo Technology |

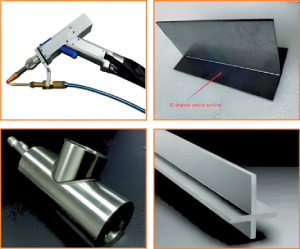

The Laser Welding machine uses a high energy laser pulse to locally heat the material in a small area. The energy of the laser radiation spreads to the inside of the material through heat conduction, and the materials melted to form a specific molten pool. It is a new type of welding.
Features:
- Portable
- Easy to Weld with clean Welds
- Fast and Accurate
- Low cost of ownership
- Homogenous fusion of material
Exchange Table Fiber Laser Cutting Machine
|

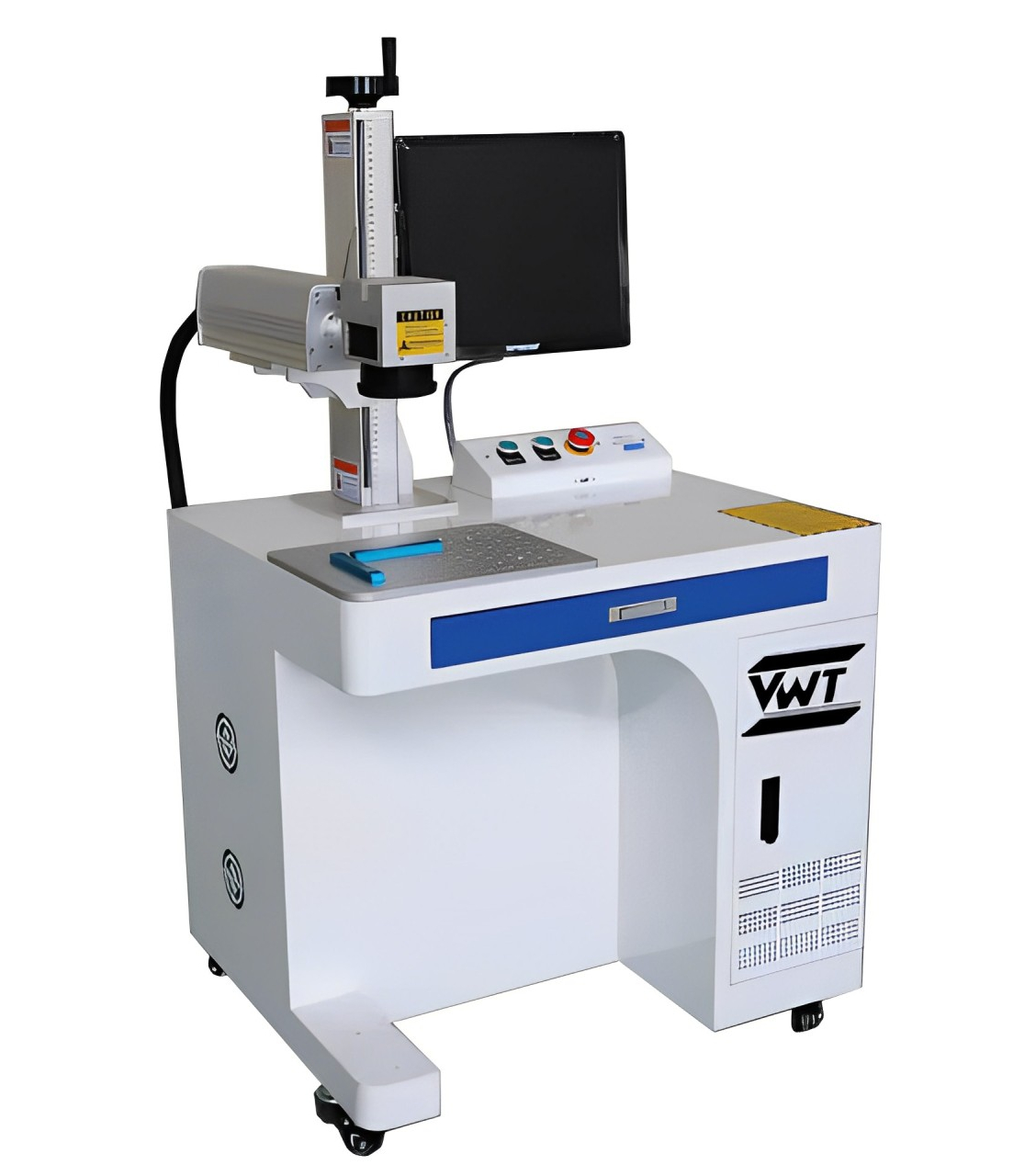

Laser Type
|
Fiber Laser
|
|
Average O/P Power
|
20W (Optional 30, 50, 100)
|
|
Operating Voltage
|
100-240V AC/50-60 Hz
|
|
Electric Consumption
|
< Kw
|
|
Graphics Format
|
PLT, DXF, BMP, MPT, TIF etc.
|
|

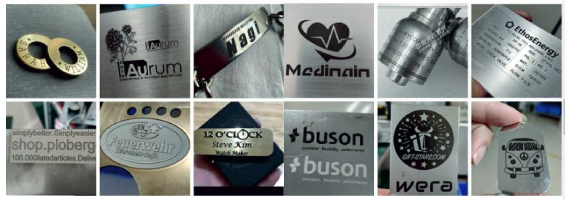

Utensils |
Solar Industry |
|
Jewellery |
Tools & Tooling |
|
Electronics |
Medical & Surgical |
|
Automobile |
Die & Mould Engraving |
|
Commercial |
Kitchen Ware & Bath Fitting |
|
Engineering |
Color Marking in SS Material |
