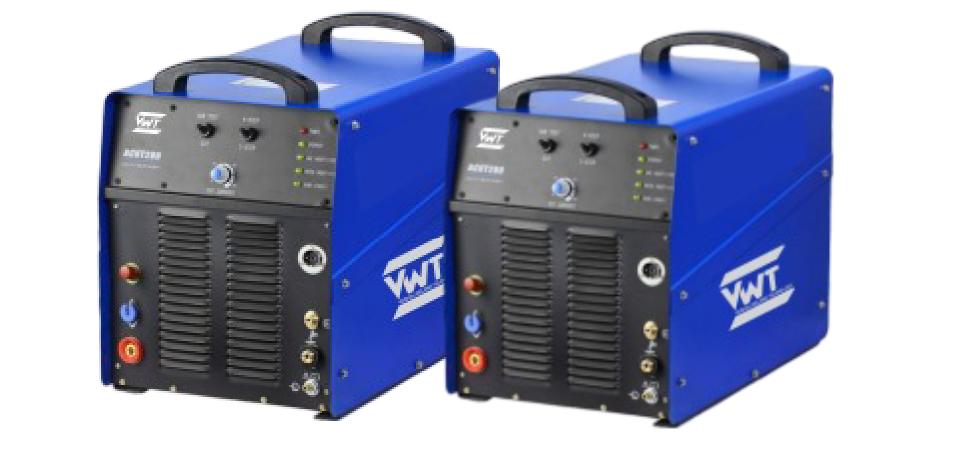

CUT 200 AO
ACUT series
ACUT series is invented for professional use in heavy-duty applications. ACUT power source can be used for manual cuts with HF ignition to provide the best arc start and avoid defects in the arc start process. ACUT series can show the best result for cutting steel with thickness up to 55 mm.Features and Benefits
- Inverter technology provides a low-weight power source that can be easily maintained or carried by the welder.
- ACUT series is a water-cooled power source to provide nonstop work with 100% duty cycle with full power.
- ACUT series provides cutting of steel, stainless steel, copper, aluminum, etc.
- Self-diagnostic and different protections help in work and maintain the power source.
Standard Equipment
- 1 Power source
- 1 Connected primary cable (L=3m)
- 1 Ground cable (L=3m)
- 1 Pressure-reducing valve
- 1 Plasma torch
Technical Specification
| ACUT200 | |
|---|---|
| Rated input voltage / frequency (Hz) | 3 phase, 380V±10%, 50 / 60Hz |
| Rated input capacity (KVA) | 42.8 |
| Rated input current (A) | 65.0 |
| Duty cycle (40C) | 100%@200A |
| OCV (V) | 350 |
| Output current range (A) | 30-200 |
| Arc ignition method | Special HF |
| Maximum cutting thickness (mm) | 55 |
| Clean cut thickness (mm) | 1-20 |
| Air pressure (MPa) | 0.4-0.55 |
| Water flow rate (L/min) | 1.4 |
| Protection class | IP23 |
| Insulation class | H |
| Dimension (mm) | 635*399*542 |
| Weight (kg/lb) | 58 / 128.1 |
