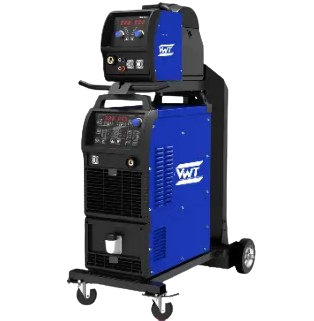

MIG - 350/500-PM-A

Features and benefits

  • Friendly user interface, easy to set-up in all weld modes.
  • Flexible parameters adjustment, such as thickness /welding angle /arc length /inductor /job mode, ensure the wonderful performance and easy welding.
  • 100 independent, user-defined, frequently used welding parameters.

Quick Specs

  • Personal User Applications
  • Containers manufacture
  • Machinery industry
  • Metal shop
  • Shipbuilding and offshore engineering
  • Construction of rail vehicles
Pictures Item Model H.D.
Circuit Breaker Circuit Breaker DZ47-60 D40GP 745015-00021
Main Control Board Main Control Board Pulse MIG350BM-1.8 726608-00038
Drive Board Drive Board ZXT-408A 7.3 745015-00036
Transformer for 2X60GB Transformer for 2X60GB NKG60B 3-1 726608-00048
Transformer for 2X60GB Transformer for 2X60GB NKG60B 3-2 726608-00054
Current Transformer Board Current Transformer Board NKG60B 5.2.0 726608-00037
Resonance Inductor Resonance Inductor ZX7-400III.3.2.0 220521-00007
Display Board Display Board Pulse MIG500III.1.1.0 220503-00011
Fan Fan 200FYZ7-D 746001-00011
Polypropylene Capacitor Polypropylene Capacitor MFD-DA01-500V-4μF 722001-00073
Polypropylene Capacitor Polypropylene Capacitor MFD-DA01-1400V-20μF 722001-00070
IGBT Protection Board IGBT Protection Board Pulse MIG350III.5.1.0 220005-00115
IGBT Module IGBT Module SKM100GB12T4 735007-00038
Fast Recovery Diode Module Fast Recovery Diode Module MMF300Y060DK1 735006-00029
Thermal Switch Thermal Switch KSD301 250V 10A 70°C 745008-00006

Process

  • CO /MAG (GMAW) /Pulsed MIG (GMAW-P) /Stick(SMAW) /Simple TIG (GTAW)/Gouging /Double Pulsed MIG

Full-digital control accurately, excellent welding performance

  • 1. Full-digital control accurately,excellent welding performance.
  • 2. Embedded welding expert database, which provides intelligent welding parameters, is widely used for selection of various welding material and sheet thickness
  • 3. Full-digital control systems for wire feeder, make wire feeding more precise and stable.
  • 4. One touch control with adjustment of current and voltage (optional )

Digital communication interface

  • Advanced digital communication interfaces, convenient to be equipped with automated welding.
Product Model Input Power Voltage/Phase/Hertz Rated Output Current/Voltage/Duty Cycle Input Current @ Rated Output
AMIG350PM Three phase
380V±20%
50/60Hz		 350A / 31.5V / 60% 21A
