Products List

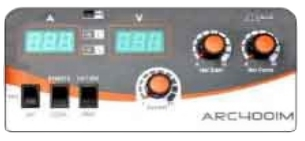

ARC - 400M, ARC – 500, ARC – 630J

Features

  • IGBT module inverter technology
  • Soft switching technology
  • Excellent welding quality. optimum arc dynamic characteristics.
  • Suitable for all acids, basic. stainless, low hydrogen electrodes.
  • Suitable for up to 5 mm electrode
  • Generator comparability International standards IEC 60974-1

Specifications

  • Digital display
  • Small size, lightweight
  • Work with generator
  • Over current/over voltage /over load protection
  • Good performance with E6013, E7018 electrodes
  • Adjustable arc force and hot start improve the performance
  • Adjustable arc force brings good performance for all position welding
Category Specification(ARC-400M/ARC – 500/ARC – 630J)
Input power source 3~AC380V±15% 50/60Hz
Rated input current (A) 28 / 40 / 50.6
Rated input power capacity (KVA) 18.2 / 29.4 / 35.5
Power factor 0.93 / 0.93 / 0.91
Output current range (A) 20-400 / 30-500 / 50-630
Arc-force range (A) 0-100 / 0-150 / 0-220
Related no-load voltage (V) 65 / 65 / 85
Rated duty cycle (%) 40°C 60 / 60 / 60
Efficiency (%) 85 / 85 / 85
Protection class IP21S / IP21S / IP23
Insulation class H / F / H
Dimensions (mm) 618x330x441 / 618x330x441 / 661x340x625
Weight (Kg) 19 / 23 / 55

Specifications

  • Adjustable Hot start
  • Adjustable Arc force/Arc gouging (ARC630)
  • Lift-arc TIG (ARC400)
  • O.C. & O.H. protection
  • Digital Current & Voltage Meter
  • VRD on off selector switch with indicator
  • Cable Remote Control
  • Selector Switch for MMA & ARC Gouging (ARC 630)
  • 2pcs quick plugs (ARC 400, 500)
  • 2pcs Lugs (ARC 630)

Standard

  • 2pcs quick plugs (ARC 400, 500)
  • 2pcs Lugs (ARC 630)

Optional

  • Cellulosic Electrode
  • Cordless Remote
