MIG 500 N (J) Welding Machine | Vaishali Welding

MIG 500 N (J)

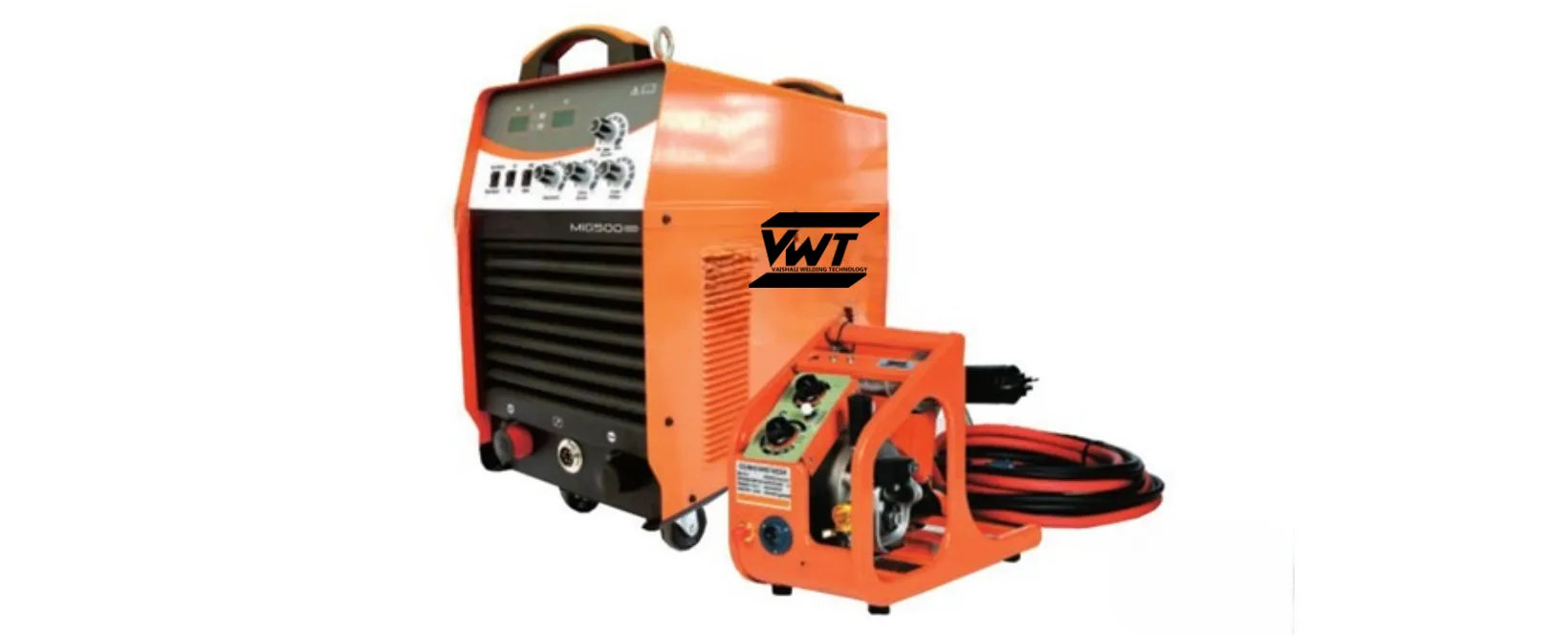

New Project (5)

Features

Full bridge soft switch technology, high reliability and less energy consumption, over-heat & over cument protection
Equipped with MIG and MMA combination enabling multiple functions and high cost effectiveness
Post welding wire ends drop elimination function, soft start wire feeding, high arc ignition successful rate.
Unique welding dynamics control circuit, less spatter, fine welding bead and high welding efficiency
A prompt feedback circuit that provides for stable am can keep electric arc adjusted responsively as wire stick-out vanes
Unique dynamics characteristic control circuit
Adjustable inductance for controlling Arc to optimize 10 weld performance.
International Standard IEC 60974-1

Specifications

Standard

MIG/MAG/MMA
Gas/Gasless FCAW
2T/4T
Built-in Hot start & arc force
Built-in Hot Start
Adjustable Inductanco linab
Inching
Gas check
Digital Display for current & voltage

Accessories

Standard

1 oot wira foodor with 36 mm cable
3 M QTB 350 Torch
400A clamp-35mm cable 1 m
1pc quick plug
36V CO2 regulator with heater
JS 36 KD Torch with Euro Adaptor (Optional)

Specification

Model	MIG-500 N
Power Source	3~AC380V+15%
No Load Voltage	66 V
Rated Input Current	36.1 A
Power Factor	0.9
Welding Voltage	15.5-50 V
Frequency	50/60Hz
Phase	Three Phase
Weight	57 Kg
Insulation Class	F
Rated Output	500/40 A/V
Efficiency (%)	85
Rated Duty Cycle	0.6
Welding Current	50-500 A
Protection Class	IP21S
Current Rating	50-500 A
Input Power Capacity	25.6 KVA
Dimension	715x420x725 mm
Wire Speed	1.5-18 m/min
Model No	MIG-500 N-308
Machine Type	MIG Welding Machine
Country of Origin	India
