Double Pluse MiG 350H / 500H (A)
Features
- Full bridge soft switch technology, high reliability and less energy consumption, over-heat & over cument protection
- Equipped with MIG and MMA combination enabling multiple functions and high cost effectiveness
- Post welding wire ends drop elimination function, soft start wire feeding, high arc ignition successful rate.
- Unique welding dynamics control circuit, less spatter, fine welding bead and high welding efficiency
- A prompt feedback circuit that provides for stable am can keep electric arc adjusted responsively as wire stick-out vanes
- Unique dynamics characteristic control circuit
- Adjustable inductance for controlling Arc to optimize 10 weld performance.
- International Standard IEC 60974-1
Specifications
Standard
- MIG/MAG/MMA
- Gas/Gasless FCAW
- 2T/4T
- Built-in Hot start & arc force
- Built-in Hot Start
- Adjustable Inductanco linab
- Inching
- Gas check
- Digital Display for current & voltage
Accessories
Standard
- 1 oot wira foodor with 36 mm cable
- 3 M QTB 350 Torch
- 400A clamp-35mm cable 1 m
- 1pc quick plug
- 36V CO2 regulator with heater
- JS 36 KD Torch with Euro Adaptor (Optional)
Specification
| MIG Welding Machine Technical Details | |||
|---|---|---|---|
| Item | Details | ||
| Rated Input Voltage/Frequency (V/Hz) | 3 Phase, AC380V±10%, 50/60Hz | ||
| Rated Input Capacity (KVA) | 13 | 24 | |
| Rated Input Current (A) | 20 | 38 | |
| Duty Cycle (40℃) | 60%@350A | 100%@500A | |
| Open Circuit Voltage (OCV) | 84 V | 84 V | |
| Adjustable Current Range (A) | 25-350 | 25-500 | |
| Adjustable Voltage Range (V) | 14-40 | 14-50 | |
| Trigger Mode | 2T / 4T, Spot, Special 4T / Special 2T | ||
| Wire Size (mm) | 0.8, 1.0, 1.2 | 1.0, 1.2, 1.6 | |
| Double Pulse Frequency (Hz) | 0.5-5 | ||
| Job Channels | 100 | ||
| Protection Class | IP23 | ||
| Dimension (mm) | 660 × 320 × 560 | ||
| Weight (kg / lb) | 45 / 99 | 53 / 116.3 | |
View More Products

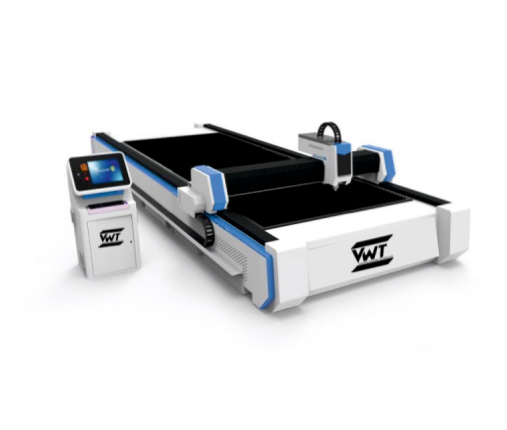

Single Table Fiber Laser Cutting Machine

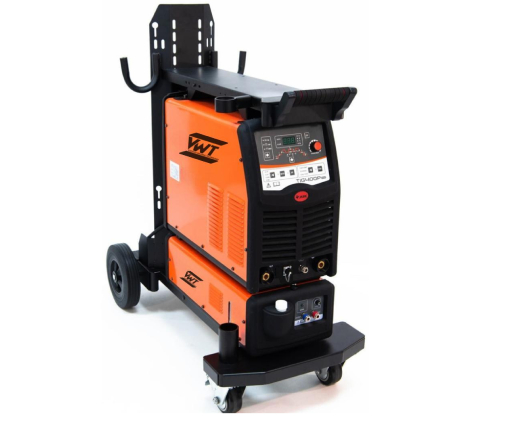

Tig Welding Machine

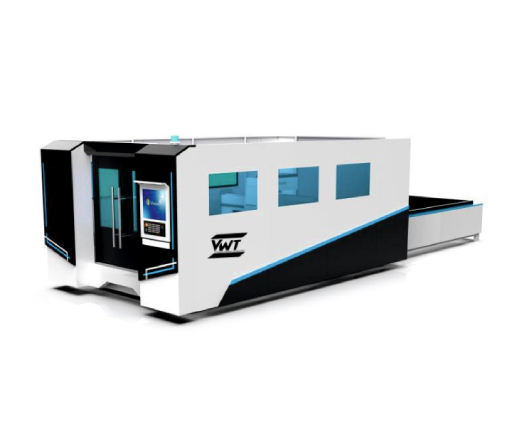

Exchange Table Laser Fiber Cutting Machine

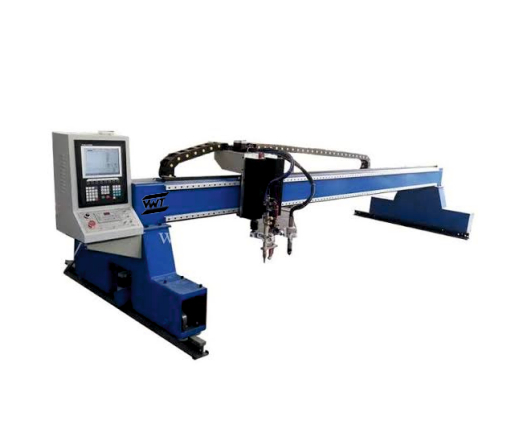

Gantry Flame / Plasma Cutting Machine

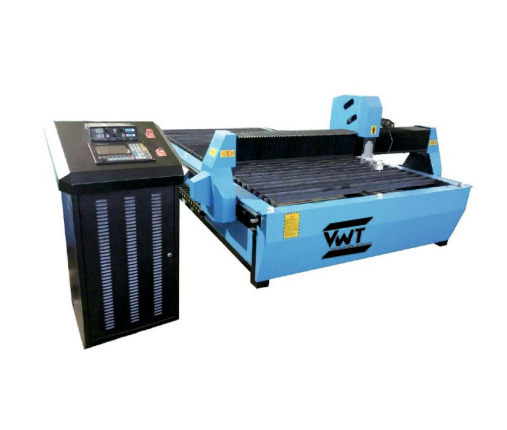

Bench Flame / Plasma Cutting Machine

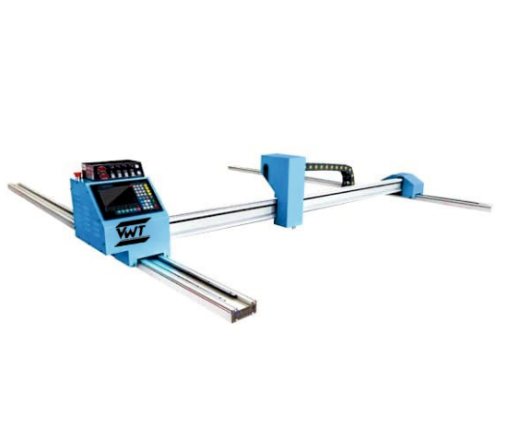

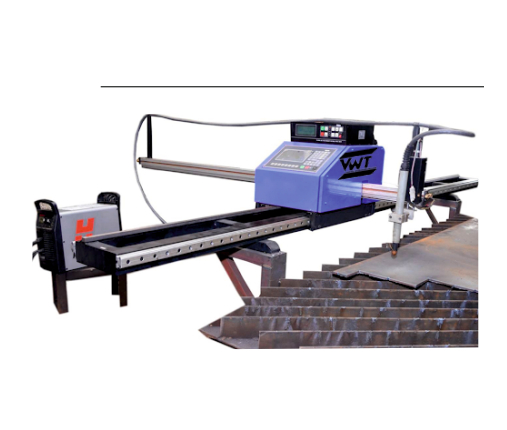

Portable Flame / Plasma Cutting Machine
Portable Cum Gantry Flame / Plasma Cutting Machine

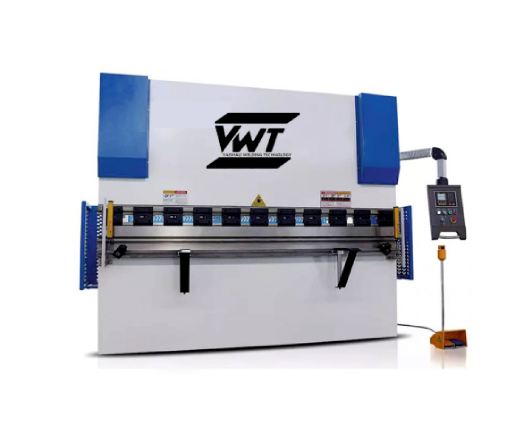

NC Press Brake Machine

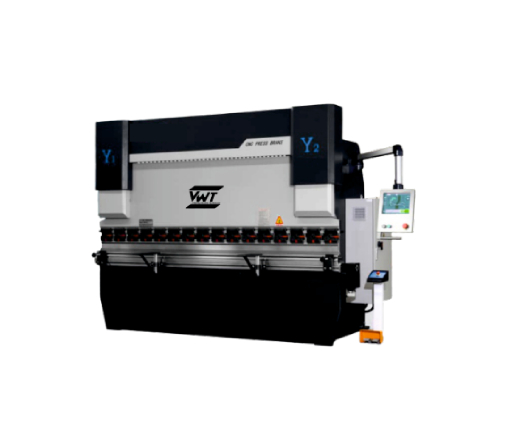

CNC Press Brake Machine
