Tig 400 AO

Features and benefits

■ Unique IGBT soft switch technology guarantees higher efficiency and longer lifespan
■ Industrial standard quality, born to work in harsh environment

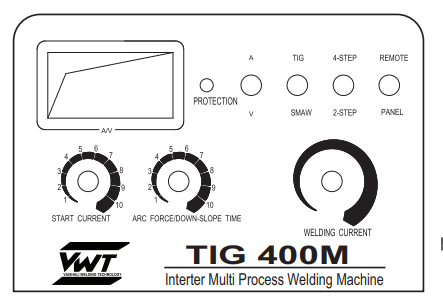

■ Arc force and hot start control: help to start arc easily and prevent sticking

■ Down-slope control: stable arc transition, outstanding crater filling performance.

■ HF arc ignition: non-contact arc start stops burning tungsten

■ High duty cycle at 40C and 10-minute condition, up to 60%

■ Extended welding cord (up to 100m)

■ Wire/wireless remote control(option)

■ VRD feature(option)

■ Generator compatible(option)

Standard equipment

■ 1 Power source

■ 1 Connected primary cable L=3m

■ 1 Ground cable L=3m

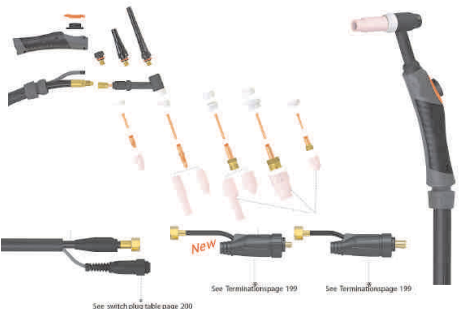

■ 1 TIG torch

PicturesItemNO.
RectifierRectifier735005-00002
IGBT ModuleIGBT Module735007-00046
Fast Recovery ModuleFast Recovery Module735006-00029

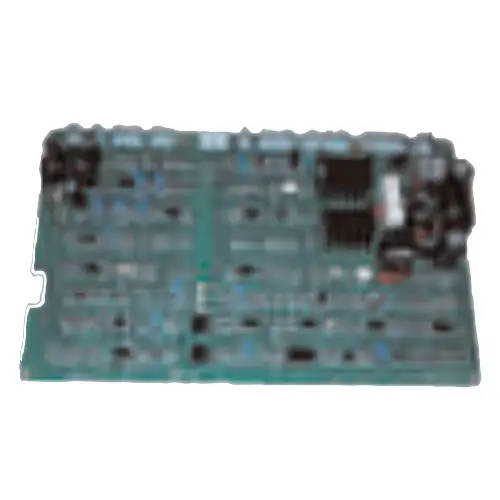

Main Control BoardMain Control Board216508-00138

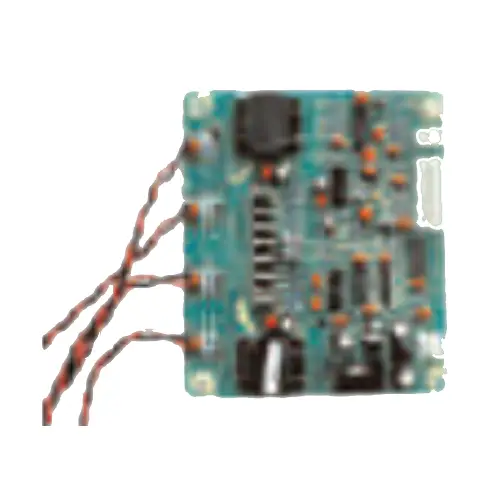

Drive BoardDrive Board210310-00020

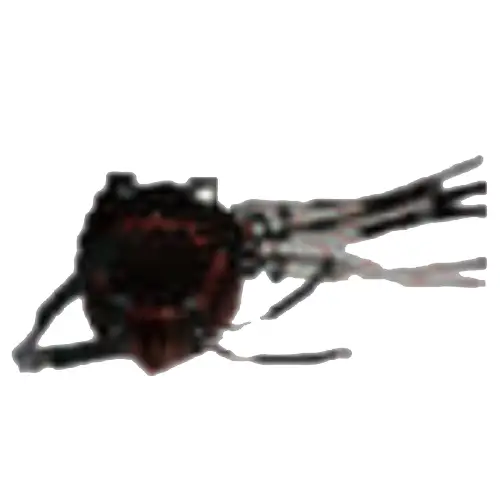

Main TransformerMain Transformer220628-00023
Power TransformerPower Transformer763001-00043

PicturesItemNO.
FanFan746001-00011
Solenoid ValveSolenoid Valve752001-00014
Current Exchange InductanceCurrent Exchange Inductance220281-00008
ThermostatThermostat745008-00006
VaristorVaristor720021-00017
Filter CapacitorFilter Capacitor722001-00073

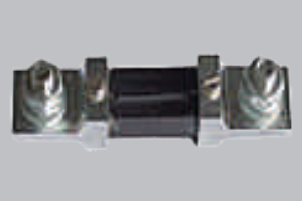

ShuntShunt720041-00008

Process

Process: DC TIG (GTAW)/Stick (SMAW)

Recommended Applications

  • Bicycle, fitness equipment, stainless furniture
  • Industry plant construction
  • Containers manufacture
  • Maintenance and repair
  • Pipeline industry
  • Shipbuilding
ModelUNITTIG400
Supply voltageVolt415
PhaseNo3
Input KVA @ 100% Duty cycle(MMA, DC TIG)KVA12.6/8.7
Welding current range(MMA, DC TIG)Amp20-400
Open circuit voltageVolt80
Welding current @ 60% Duty cycle(MMA, DC TIG)Amps400/400
Welding current @ 100% Duty cycle(MMA, DC TIG)Amps310/310
Type of coolingTypeForced air
Dimensions(LxWxH)mm576x297x557
Class of insulationClassH
Weight(approx)Kg43
Water cooling unitTypeSLJ-10/SLJ-20
